PE100 shoulder ends give a new choice of connection and easy disconnection, particularly in the mining industry. Not to be confused with roll grooves, shouldered systems are normally utilised with steel pipe systems. We understand the need for flexibility, and noting the demand for two bolt clamps, we designed a weldable end to suit the …
Flanged joints in pipelines are used to create a demountable joint for future disassembly to connect valves and vessels, either where strength in tension is required, or to join to other materials. Advanced Piping Systems has a complete range of full-face flanges, accompanied by galvanised metal backing plates. A range of Stub Flanges is also …
Transition pieces are used to overcome the mismatch of wall thickness especially where there are SDR changes. For example 630 SDR9 to 630 SDR17. If Best Practice is not followed there could a potential notching affect which exposes weak welds which can in turn have catastrophic effect. Advanced Piping Systems suggests that all Butt Fusion …
Galvanised Quick Release Shouldered Couplings have all the features of the Advanced Piping bolted shouldered couplings, but with an even quicker assembly and disassembly. This gives significant cost savings by reducing time. Also, there are no tools, or bolts and nuts required or loose. Simply stretch the gasket over the shouldered ends and pull the …
SDR11 Short spigot or buttweld eccentric reducers, SDR11 are an extremally useful way of gaining height or fall within the original pipe diameter. Reducing on a level plain be it on the top or bottom of the pipe. In horizontal intakes or pump suction piping, it is best to install the reduction level with the …
Valve spacers are a useful addition when flanging to wafer and lugged butterfly valves, or wafer check valves. The spacer provides an enlarged working zone in front of the stub flange face for the valve disk or flaps to move freely, whilst maintaining the integrity and pressure rating of the pipeline, valve and flange set. …
Short radius bends 90 SDR11 are the trimmest and most high-performance fully injection moulded bends available. These bends may also be referred to by piping designers as: 90-degree elbows, long radius bends, or One-D bends (1 x D bends). This is because the radius of the bend is the same as the diameter of the …
Advanced Piping shouldered clamps are manufactured from quality cast iron, then hot dip galvanised to provide longevity in their typical environment, which includes being dragged around a coal long wall, gold decline, or a dewatering bore on an open cut mine. The couplings final dimensions are very critical to connecting and sealing the two shouldered …
The Advanced Piping Systems PE100 stepped concentric reducers, also known as wedding cake reducers, give you four reduction options in one simple fitting. With the unpredictability of maintenance and project construction, many contractors will keep a few of each reducer available as backup to cover unexpected situations. The stepped reducer will give you immediate flexibility …
Buttweld reducers play a crucial role in pipeline systems by seamlessly connecting pipes and fittings of varying diameters while maintaining optimal flow dynamics. In particular, buttweld concentric reducers are designed to provide a smooth, symmetrical transition between different pipe sizes, ensuring efficient fluid movement. These reducers taper evenly, allowing for a direct in-line conical transition …
Advanced Piping Systems range of hybrid machined tees now offers the flexibility and versatility required to complete even the most complex of projects. The ability to have PE fittings up to 1600mm fully rated, customised and made-to-order has our custom range of equal and reducing hybrid tees reaching new heights. They obtain the previously impossible. …

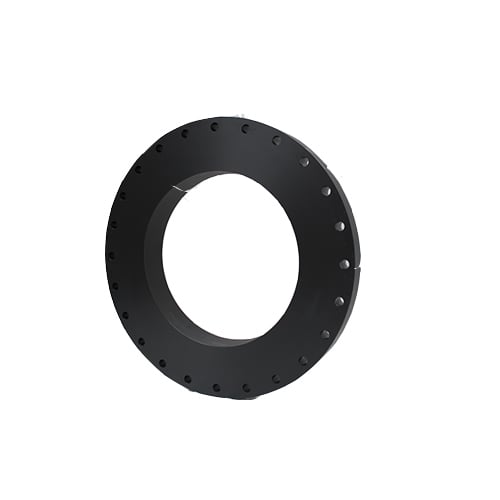

The Advanced Piping Systems full face flange covers the entire flange face and includes bolt holes, typically used in flat faced flanges. Flanges are used to provide a contact surface for connecting to Poly Pipe or to other materials, while the bolt holds are used to pull and tighten the connection between the two materials. …
